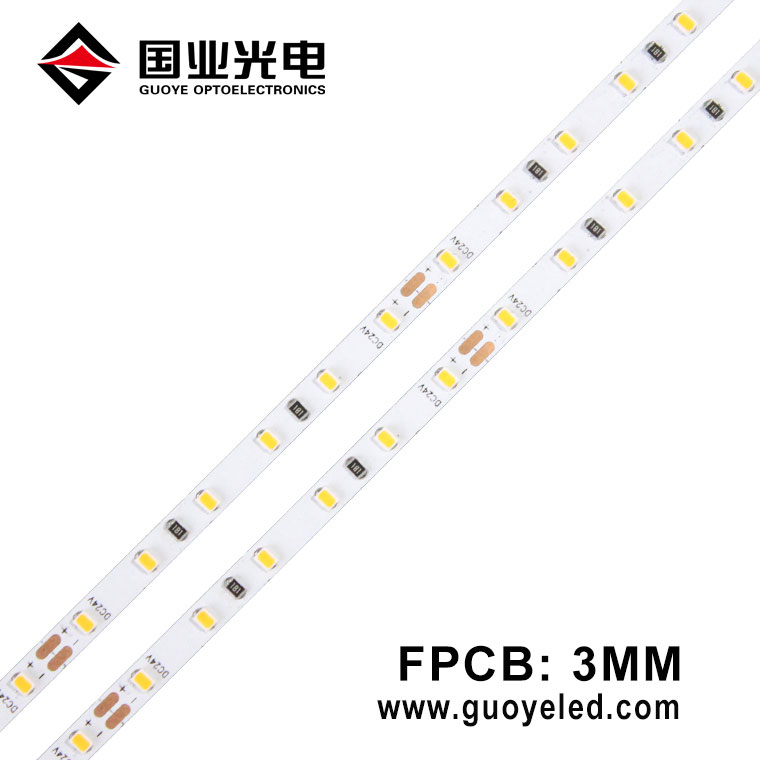

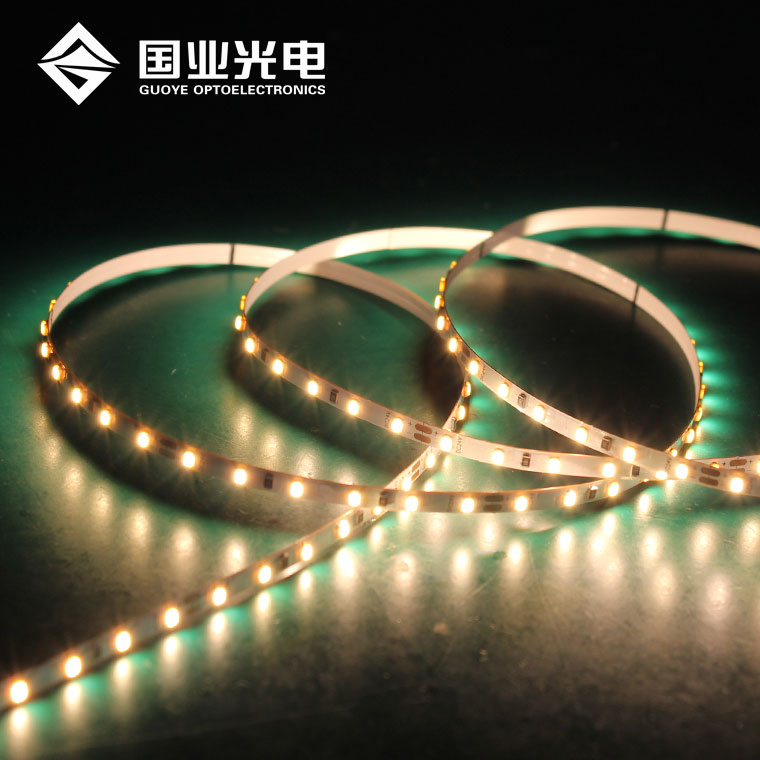

1.Product Introduction of 3mm super narrow led strip
12V 24V 3mm width SMD 2216 120leds/m super narrow led strip light uses 2216 miniature size SMD, high brightness, good light efficiency. newly designed narrow plate can be well adapted to mirror, instrument, mechanical gap, electronic products and other lighting sites. free samples are available. welcome to contact for more information.
2.Product:model
Name:2216-120D-3mm (12V 24V) LED strip light
SPEC NO. :
-
GY
①
-
-
FS
②
-
-
12V
③
-
-
2216
④
-
-
120D
⑤
-
-
3MM
⑥
-
-
30K
⑦
-
-
80
⑧
-
-
IP30
⑨
-
①: GY-GUOYE
④: SMD Options
⑦: Color Options
-
②: FS-Flexible Strip
⑤: LED QTY Options
⑧: CRI Options
-
③: Voltage Option
⑥: FPCB width Options
⑨: IP Rank Options
3.Product Parameter
|
LED type
|
2216 7-9LM 0.06W
|
Power
|
9.6W/M
|
|
Voltage
|
DC12V 24V
|
Cri
|
80+ or 90+
|
|
LED Density
|
120pcs/M
|
Certificate
|
CE ROHS
|
|
Lumen (m)
|
1200lm
|
Warranty
|
3 YEARS
|
|
PCB Type
|
2.5mm, 2oz, White PCB ,
|
Pack
|
5M/R or others
|
|
Cut unit
|
5.0cm/12V 2.5cm/24V
|
IP Rank
|
IP30
|
|
Color
|
2700K 3000K 4000K 6000K
|
4.Product Feature and Application
super narrow led strip 12v 24v 120led ultra thin led strip light 3mm width FPCB, High light efficiency, high color consistency, high display index, Suitable for mirror, instrument, mechanical gap, electronic products and other lighting sites.
High quality 2 OZ double layer FPCB, original San’an Brand led chip, Stable quality, economical price, Good color consistency.
CE ROHS approve, Customized service available, 3-5 Years Warranty.
It is ok to be customize brightness , power , color CRI and so on . welcome to contact us for more information
5.Product attention
1. Do not long time light up when rolling on reel.
2. Do not overload lighting
3. Do not short circuit lighting
4. Do not plug to home 110V/220V Power
5. Do not put into water when it is not waterproof
