SK9822 addressable led strip

Product Introduction of SK9822 addressable led strip

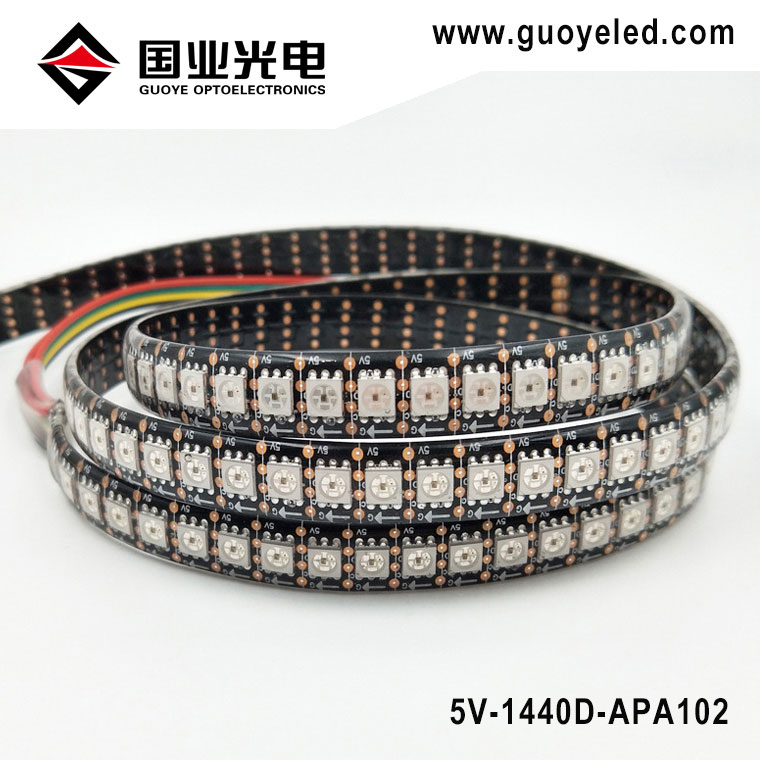

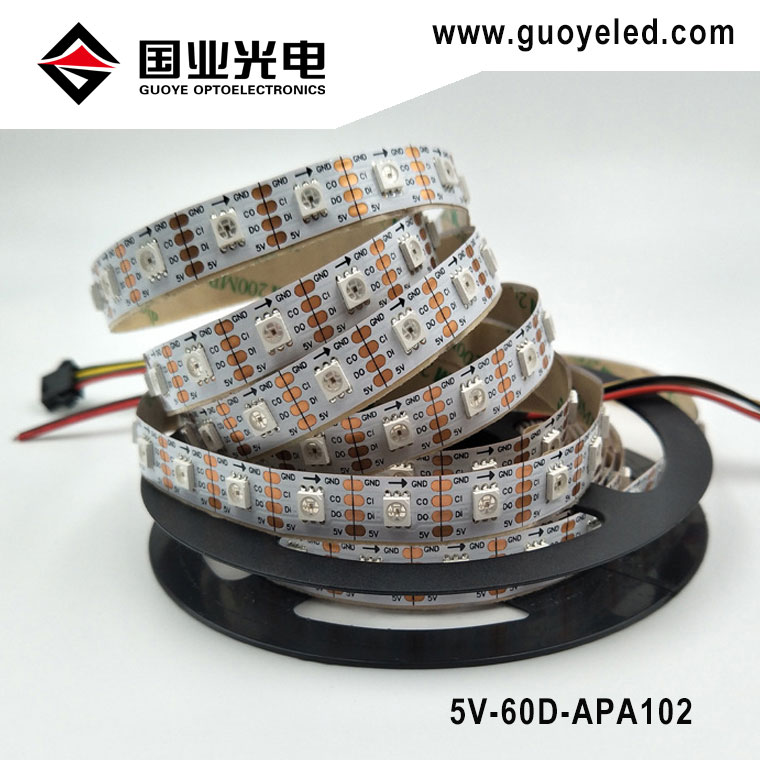

These Intelligent IC chip SK9822 addressable pixel led strip, based on the SK9822 smart IC chip, make it easy to achieve complex lighting effects with a simple controller. Each led is an integrated pixel, so the controller can individually control the color of each lamp. SK9822 has the same effect as APA102. We design different LED density and length, offering 3 different SK9822 LED belts. We provide 30 LED strips per meter, usually 5 meters per roll, 150 pixels. We provide 60 LED strips per meter, usually 5 meters per roll, 300 pixels. We provide 144 LED strips per meter, usually 1 meter each, 144 pixels

Product Parameter

LED type	5050 RGB 0.2W	Power	-W/M
Voltage	DC5V	IC Type	APA102 / SK9822
LED Density	60pcs/M	Certificate	CE ROHS
Lumen (m)		Warranty	3 YEARS
PCB Type	10 mm, 2oz, White PCB,	Pack	5M/R or others
Cut unit	1 led / cut	IP Rank	IP30 IP65 IP67 IP68
Color	RGB

Waterproof grade and use environment

We offer different waterproof grades to choose from according to different using environment.
IP20:NON-Waterproof (indoor use, dry places)
IP65:Cover with PU / silicon glue (indoor use, Resistance to moisture and dust)
IP67:Cover with Silicone tube ( indoor or outdoor use, Resistance to moisture and dust)
IP68:Cover with Silicon tube and put silicon glue inside tube, (outdoor use, it is ok to put into underwater or Rainy Places)

Connection method

Products attention

1,Do not long time light up when rolling on reel.
2,Do not overload lighting
3,Do not short circuit lighting
4,Do not plug to home 110V/220V Power
5,Do not put into water when it is not waterproof
