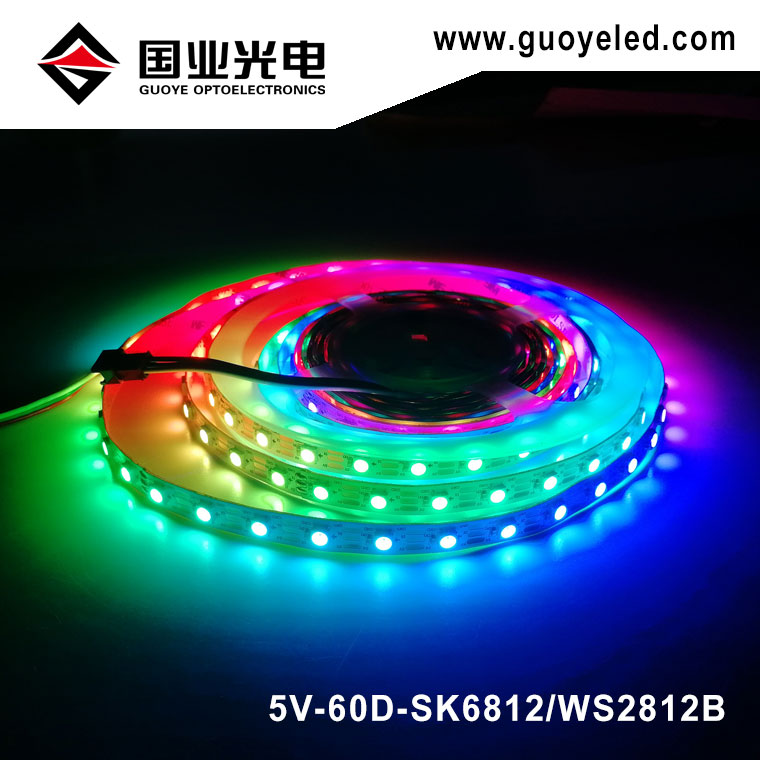

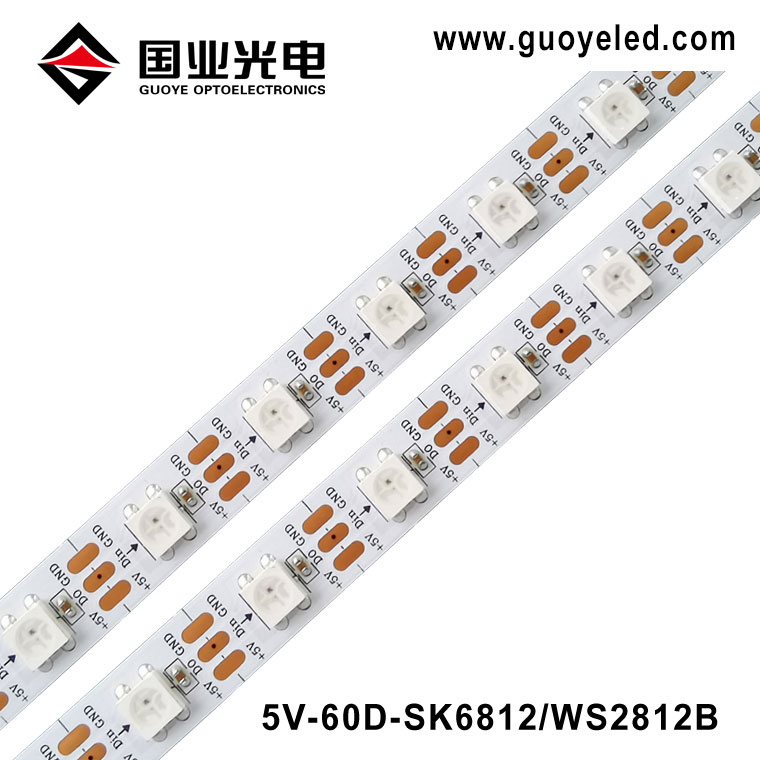

Ws2812b programmable rgb led strip is a cool and popular light strip, you can control its light color, brightness, speed for each individual LED lamp, it allows you to produce amazing and complex effects in a simple way. This led strip light is composed of LED lights with each built-in intelligent IC chip in series, and is connected with two positive and negative power lines through a data signal line to achieve its effect. The ribbon is flexible and can be cut to any length required.
Product Parameter
|
LED type
|
5050 RGB 0.2W
|
Power
|
14.4W/M
|
|
Voltage
|
DC5V
|
IC Type
|
Ws2812 / sk6812
|
|
LED Density
|
60pcs/M
|
Certificate
|
CE ROHS
|
|
Lumen (m)
|
|
Warranty
|
3 YEARS
|
|
PCB Type
|
10 mm, 2oz, White PCB ,
|
Pack
|
5M/R or others
|
|
Cut unit
|
1 led / cut
|
IP Rank
|
IP30 IP65 IP67 IP68
|
|
Color
|
RGB
|
Waterproof grade and use environment
We offer different waterproof grades to choose from according to different using environment.
IP20:NON-Waterproof (indoor use, dry places)
IP65:Cover with PU / silicon glue (indoor use, Resistance to moisture and dust)
IP67:Cover with Silicone tube ( indoor or outdoor use, Resistance to moisture and dust)
IP68:Cover with Silicon tube and put silicon glue inside tube, (outdoor use, it is ok to put into underwater or Rainy Places)
Connection method
Products attention
1, Do not long time light up when rolling on reel.
2, Do not overload lighting
3, Do not short circuit lighting
4, Do not plug to home 110V/220V Power
5, Do not put into water when it is not waterproof
