Digital rgb led strip ws2811

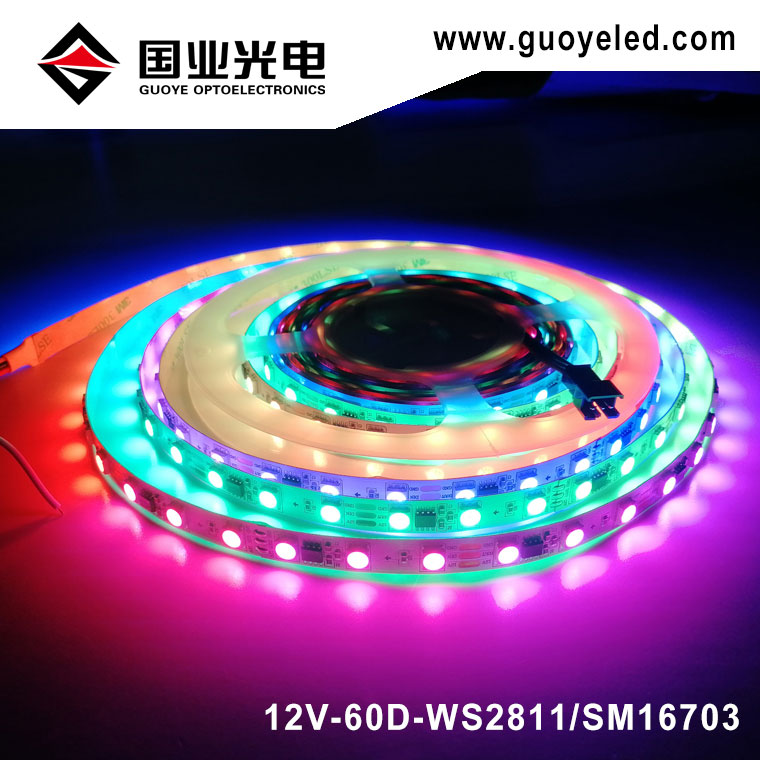

Guoye Optoelectronics produce quantity digital RGB led strip ws2811 IC, it is a hot, popular addressable light strip. Voltage dc12v with high brightness 5050 RGB SMD, 60led per meter 5meter roll 300leds, IC Model is WS2811 with 20pcs per meter. Individual pixel led strip is also called digital led strip, addressable led strip, magic led strip, or dream color led strip, Please contact us for the latest product specifications

Model:GY-FS-5050-60D-WS2811-RGB (12V)

Send Inquiry

Product Description


Product Introduction of digital RGB led strip ws2811

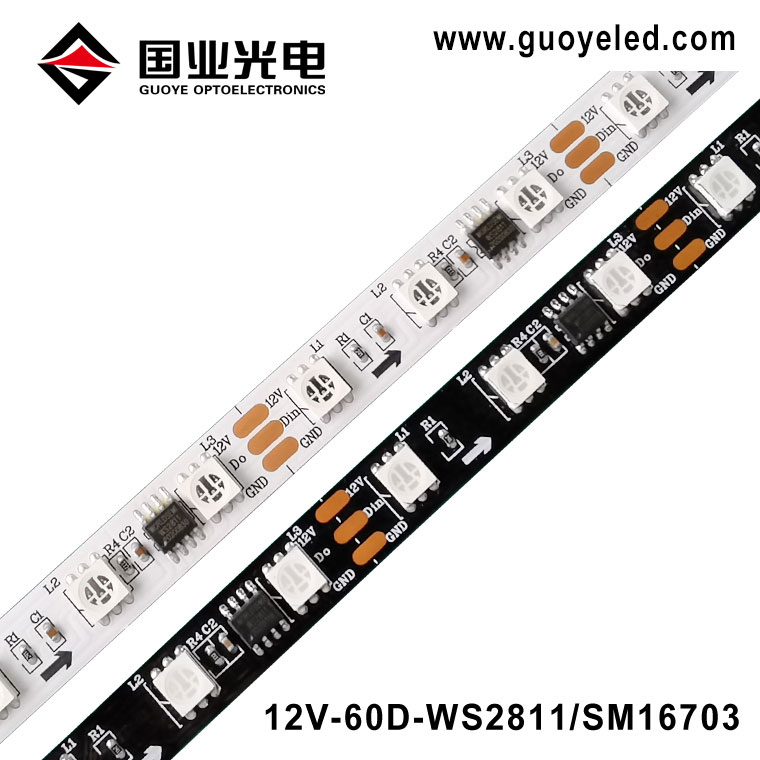

Digital RGB led strip ws2811 with 5050 SMD 60LED per meter strip is the most traditional, classical, stable pixel led strip light. It is single line signal, external drive intelligent IC, through the setting of the degree, you can arbitrarily switch different effects. Perfect 3 lights +1 IC drive design, every 3 lights to form pixels, each section can be cut at will, constant voltage 12v safe voltage stable and reliable, WS2811 5050 RGB Running Horse Magic color Flow Dimming programming pixel Addressable led strip light, the light source is 5050 SMD RGB color, we make 30leds per meter, 5meter as a roll, it is 150leds, IC Model is WS2811 with 20pcs per meter. Suitable for car atmosphere lights, stage lights, city lighting, time tunnel lights, Ferris wheel decorative lights and so on. Welcome to contact us for more information, and looking for a long-term cooperation.



Product Parameter


LED type 5050 RGB 0.2W Power 14.4W/M
Voltage DC12V IC Type Ws2811 / SM16703
LED Density 60pcs/M Certificate CE ROHS
Lumen (m)   Warranty 3 YEARS
PCB Type 10 mm, 2oz, White PCB , Pack 5M/R or others
Cut unit 5.0cm/12V IP Rank IP30 IP65 IP67 IP68
Color RGB



Waterproof grade and use environment


We offer different waterproof grades to choose from according to different using environment.
IP20:NON-Waterproof (indoor use, dry places)
IP65:Cover with PU / silicon glue (indoor use, Resistance to moisture and dust)
IP67:Cover with Silicone tube (indoor or outdoor use, Resistance to moisture and dust)
IP68:Cover with Silicon tube and put silicon glue inside tube, (outdoor use, it is ok to put into underwater or Rainy Places)



Connection method



Products attention

1, Do not long time light up when rolling on reel.
2, Do not overload lighting
3, Do not short circuit lighting
4, Do not plug to home 110V/220V Power
5, Do not put into water when it is not waterproof

Hot Tags: Digital rgb led strip ws2811, China, Suppliers, Factory, Manufacturers, Wholesale, Customized, Price, Pricelist, Fashion, 2 years warranty
