Led pixel tape light

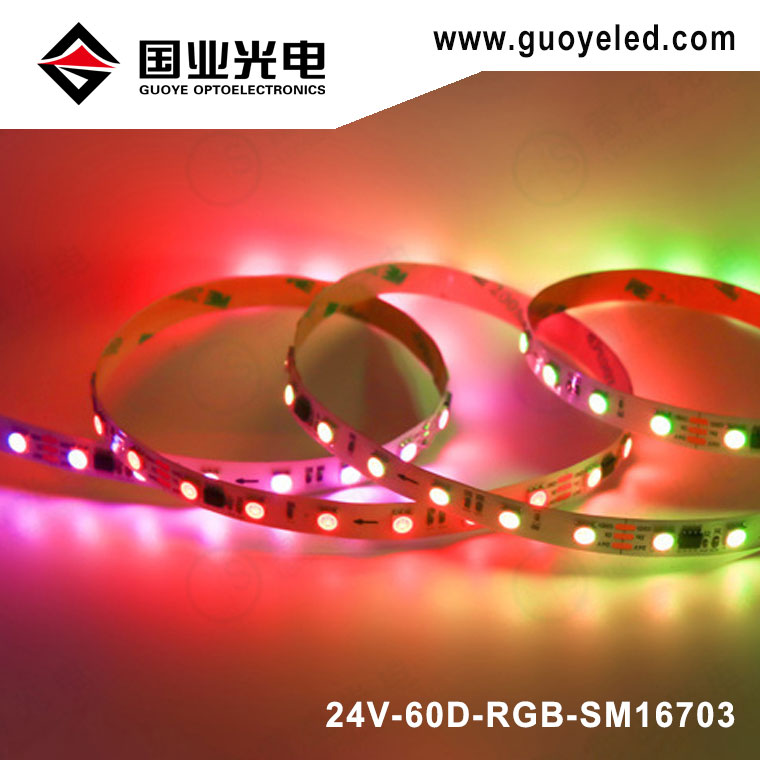

Guoye Optoelectronics is a large quantity of led pixel tape light manufacturer and supplier. DC24V LED pixel tape light with RGB color and IC ws2811 SM16703 for creative dynamic lighting projects. 24V digital pixel LED tape light is controlled in groups of six LEDs. It is Very cost-effective and good for lighting projects.

Model:GY-FS-5050-60D-SM16703-RGB (24V)

Send Inquiry

Product Description


Product Introduction of led pixel tape light

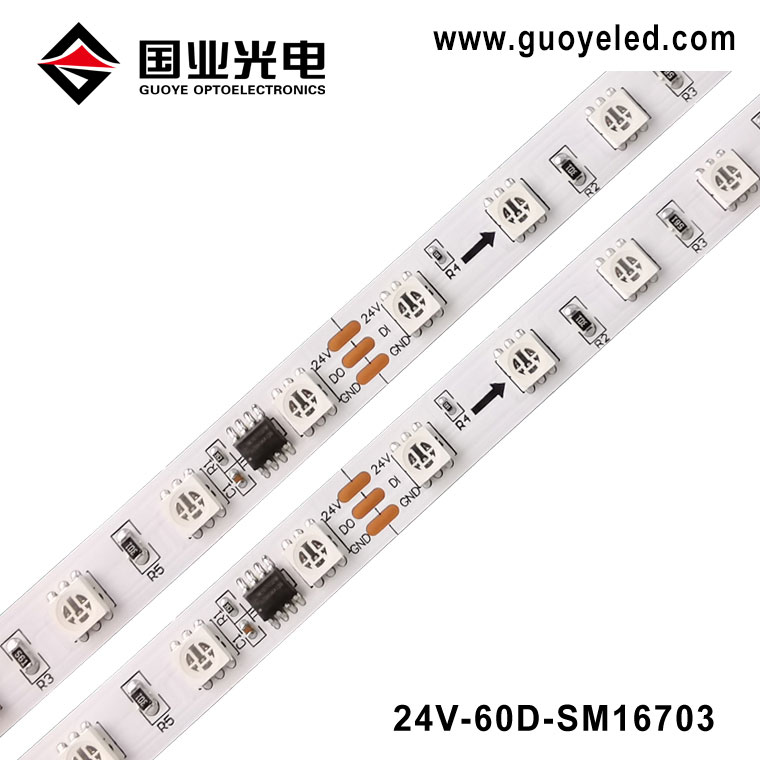

LED pixel tape light addressable SPI LED strip light, with IC type ws2811, sm16703, it is very hot sales and cost-effective offer, The pixel tape light adopts super bright SMD 5050 as the light source, with long life and pure color. High quality intelligent IC chip configuration, stable quality, rich and colorful effect, can develop a variety of effects, 24V safety voltage, every 6 lights with an IC, forming as pixel group, can be adapted to many engineering applications projects. It can be cut at will. There is double-sided electrolytic copper circuit board, good flexibility with 3M back adhesive, easy installation. Welcome to contact us for more information, and looking for a long-term cooperation.



Product Parameter


LED type 5050 RGB 0.2W Power 14.4W/M
Voltage DC12V IC Type Ws2811 / SM16703
LED Density 60pcs/M Certificate CE ROHS
Lumen (m)   Warranty 3 YEARS
PCB Type 10 mm, 2oz, White PCB , Pack 5M/R or others
Cut unit 10.0cm/24V IP Rank IP30 IP65 IP67 IP68
Color RGB



Waterproof grade and use environment


We offer different waterproof grades to choose from according to different using environment.
IP20:NON-Waterproof (indoor use, dry places)
IP65:Cover with PU / silicon glue (indoor use, Resistance to moisture and dust)
IP67:Cover with Silicone tube ( indoor or outdoor use, Resistance to moisture and dust)
IP68:Cover with Silicon tube and put silicon glue inside tube, (outdoor use, it is ok to put into underwater or Rainy Places)



Connection method




Products attention

1, Do not long time light up when rolling on reel.
2, Do not overload lighting
3, Do not short circuit lighting
4, Do not plug to home 110V/220V Power
5, Do not put into water when it is not waterproof
